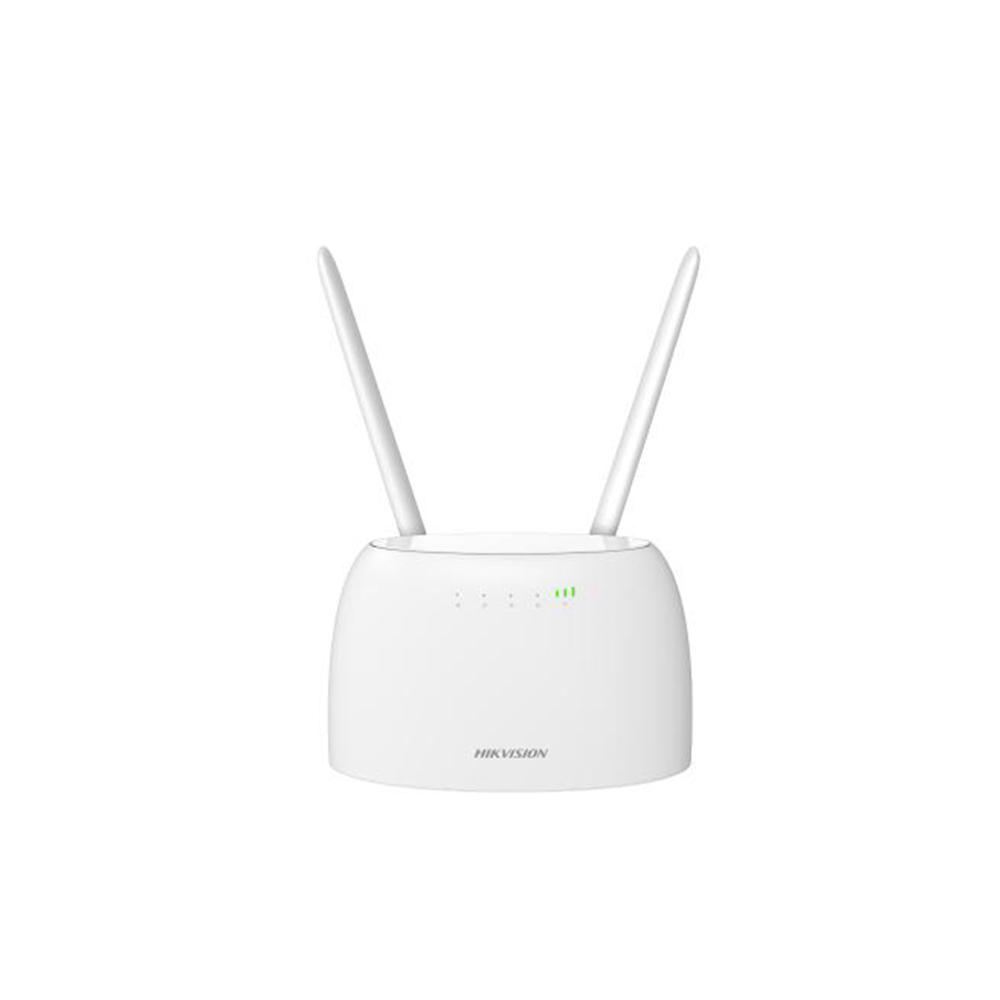

Hikvision AC1200 4G CAT4 Wireless Router/SIM CARD

General

• Product Dimensions (W × H × D) 233.9mm×151.4mm×40.3mm
• Package Dimensions (W × H × D) 405mm×307mm×80mm
• Net Weight 0.560kg
• Packing List

  4G LTE Router × 1

  Power Adapter × 1

  Detachable Antenna × 2

  Ethernet Cable × 1

  SIM Card Adapter × 1

  Quick Start Guide × 1

  Regulatory Compliance and Safety Information × 1

• Packing Method Single pack
• Working Temperature 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity 10% to 90% RH non-condensing
• Storage Temperature -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity 5% to 90% RH non-condensing
• Installation Mode Desktop installation
• Max. Power Consumption ≤ 9 W
• Gross Weight 0.620 kg

Wireless Parameter

• Max. Transmission Rate of Air Interface

  ≤ 1167 Mbps

  2.4 GHz: 300 Mbps

  5 GHz: 867 Mbps

• Wireless Standard IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
• Working Frequency Band 2.4 GHz，5 GHz
• Transmitting Power 16dBm @ 2.4G-mcs7、17dBm @ 5G-mcs9
• Wireless Performance 2*2 MIMO supported
• Receiving Sensitivity

  -58 ± 2 dB@AC80 -MCS9

  -84 ± 2 dB@AC80 -MCS0

• Antenna 2 high gain antennas
• Network Type LTE CAT.4
• Mobile Standards FDD LTE, TDD-LTE,WCDMA
• Mobile Bands 4G FDD LTE: B1/B3/B7/B8/B20/B28AB,4G TDD-LTE: B38/B40/B41,3G WCDMA: B1/B8
• 4G Speed DL: 150 Mbps, Upload: 50 Mbps

Hardware Parameter

• Network Interface 2 × RJ45, 10/100 Mbps auto-negotiation
• LED Indicator power LED*1、internet LED*1、WiFi LED*1、RJ45 LED*1、LTE LED*3
• Reset Reset button*1
• Power Supply Method 9 VDC, 1 A power adapter power supply
• Power Specifications 9 VDC, 1 A
