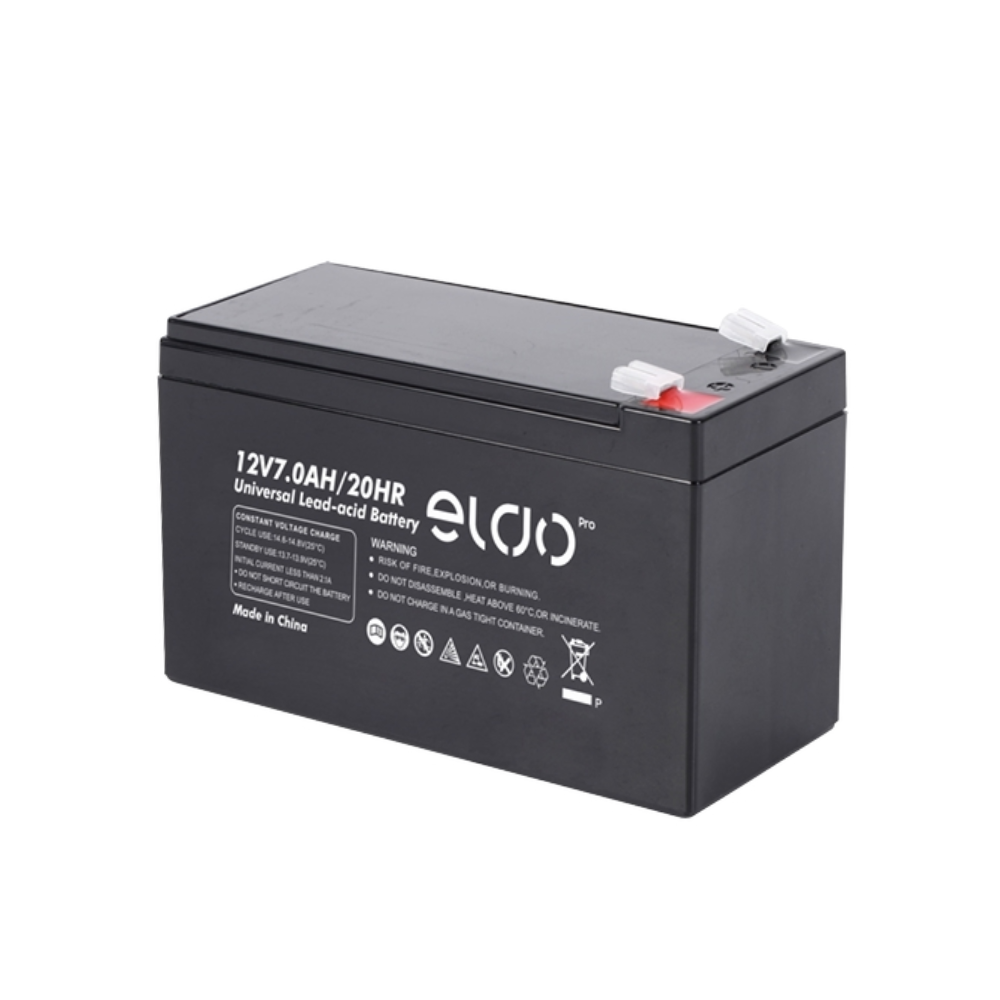

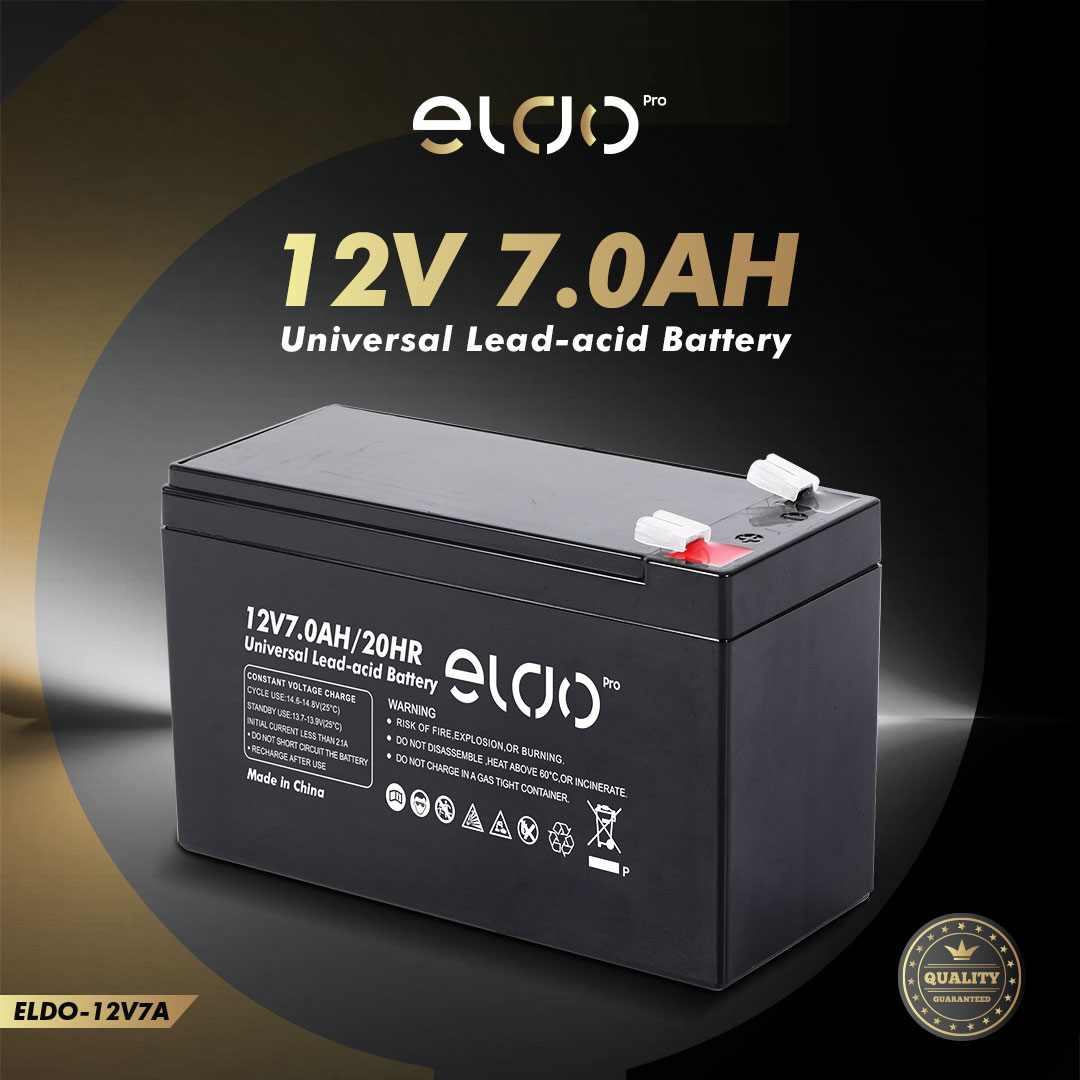

Eldo UPS Battery 12V 7A With Color Box

Ask for Price

Nominal Voltage: 12V
Capacity (at 77°F / 25°C):
- 20HR (0.360A): 7.20Ah
- 10HR (0.670A): 6.70Ah
- 5HR (1.224A): 6.12Ah
- 1HR (4.392A): 4.39Ah
- 15 min (13.32A): 3.33Ah
Internal Resistance (Fully Charged): ~22mΩ
Temperature Capacity Dependence (20HR):
- 104°F (40°C): 102%
- 77°F (25°C): 100%
- 32°F (0°C): 85%
- 5°F (-15°C): 65%
Self-Discharge (at 68°F / 20°C):
- 3 months: 90% capacity
- 6 months: 80% capacity
- 12 months: 60% capacity
Max. Discharge Current (77°F / 25°C): 108A (5s)
Floating Design Life (77°F / 25°C): ~5 years
Charging (Constant Voltage, 77°F / 25°C):
Cycle Use: 14.5–14.9V (−24mV/°C), max current 2.16A
Float Use: 13.6–13.8V (−18mV/°C
