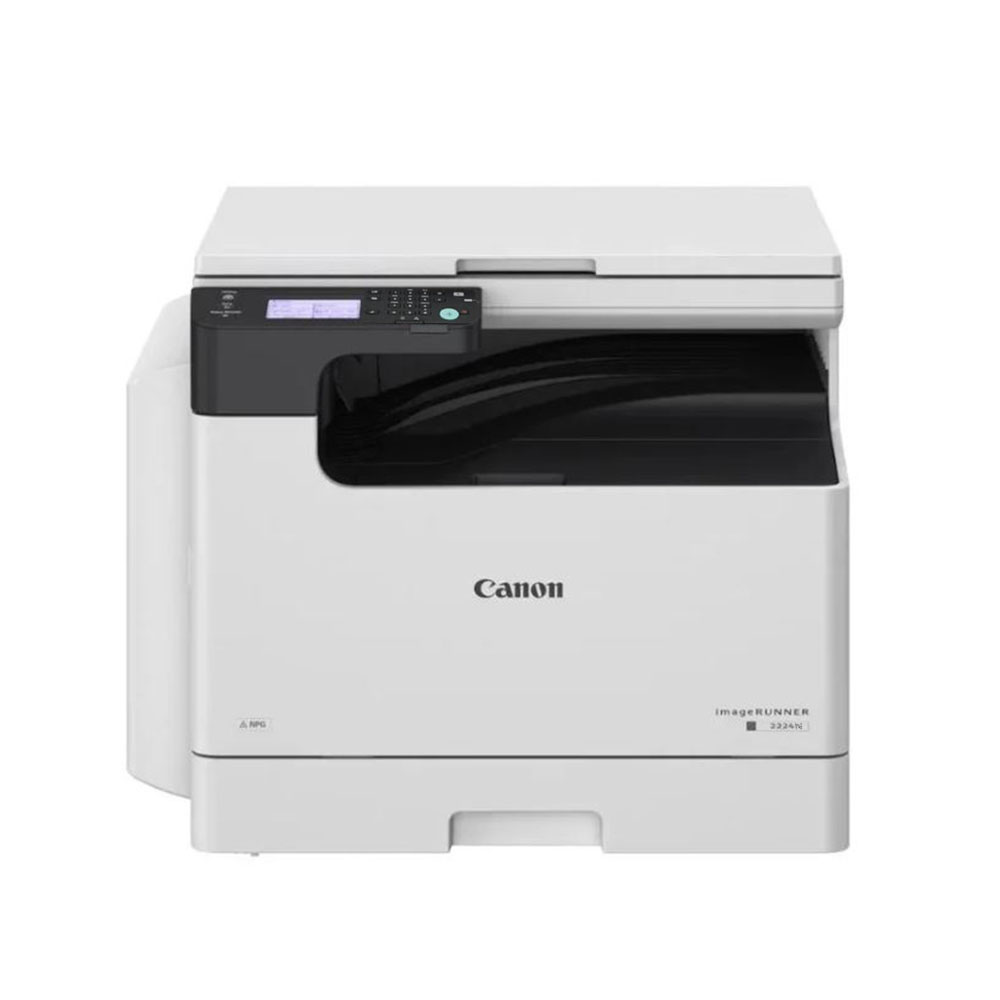

Canon Copier IR2224N A3 Monochrome Photocopier -Print, Scan, Copy

Main Unit

• Machine Type A3 Monochrome Laser Multifunctional
• Core Functions Print, Copy, Scan, Send and Fax
• Processor Speed 1.6GHz Dual Core Processor
• Control Panel 8.9 cm/3.5 inch monochrome Touch panel
• Memory Standard: 1.0GB RAM
• Storage Standard: 2GB eMMC
• Interface Connection NETWORK Standard: 100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
  OTHERS Standard: USB 2.0 (Device) x1
• Paper Supply Capacity (A4, 80 gsm) Standard: 350 sheets
  Maximum: 600 sheets (with Cassette Feeding Module-AK1)
• Paper Output Capacity (A4, 80 gsm)
  Standard: 250 sheets
  Maximum: 250 sheets
• Finishing Capabilities
  Collate, Group
• Supported Media Types
  Multi-purpose Tray:
  Thin, Plain, Recycled, Thick, Color, Bond, Transparency, Label, Pre-punched, Envelope

  Paper Cassette:
  Plain, Recycled, Color, Pre-punched

• Supported Media Sizes
  Multi-purpose tray:
  A3, A4, A4R, A5, A5R, B4, B5, B5R,
  Envelope (COM10, Monarch, DL, ISO-C5)
  Custom size Min. 95.0 x 148.0mm up tp 297.0 x 431.8mm

Print Specifications

• Print Speed
  1-sided : Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
  2-sided : Up to 16.7 ppm (A4), Up to 7.5ppm (A3), Up to 7.8ppm (A4R)
• Print Resolution (dpi)
  Up to 1,200 x 1,200
• Page Description Languages
  UFRII, PCL6/PCL5
• Double-Sided Printing
  Yes

Copy Specifications

• Copy Speed
  1-sided : Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
  2-sided : Up to 16.7 ppm (A4), Up to 7.5ppm (A3), Up to 7.8ppm (A4R)
• First-Copy-Out Time
  Platen: Approx. 7.4 seconds or less
• Copy Resolution (dpi)
  600x 600
• Multiple Copies
  up to 999 copies
• Copy Density
  Automatic or Manual (9 Levels)
• Magnification
  25% – 400% (1% Increments)

Scan Specifications

• Type Standard Duplexing Automatic Document Feeder [2-sided to 2-sided]
• Pull Scan Specifications
  ScanGear MF. For both TWAIN and WIA
  Windows^®8.1/ Windows^®10/Windows^®11
  macOS (10.12 or later)
  * As of Nov 2022
• Scan Resolution (dpi)
  Scan for Copy: up to 600 x 600
  Scan for Send: (Push) up to 300 x 600, (Pull) up to 600 x 600
  Scan for Fax: up to 200 x 400
• Document Feeder Paper Capacity (80 gsm)
  50 Sheets（80sm)
• Acceptable Originals/Weights
  Platen: Sheet, Book
  Document Feeder sheet media weight :
  1-sided/2-sided continuous scanning: 52 to 105 gsm (BW/CL)

  Only 1-sheet feeding is supported in 37-52 and 105-128 gsm.

• Supported Media Sizes
  Platen max. scanning size: 297.0 x 432.0 mm
  Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R
  Custom size: 128.0 x 148.0 mm to 297.0 x 432.0 mm
• Scan Method
  Push Scan, Pull Scan, Scan to Network
• Scan Speed
  DADF：
  1-sided Scanning: 35/25 (300 dpi, send), 25 (600 dpi, copy)
  2-sided Scanning: 12/8 (300 dpi, send), 8 (600 dpi, copy)
• Double-Sided Scanning
  Yes
